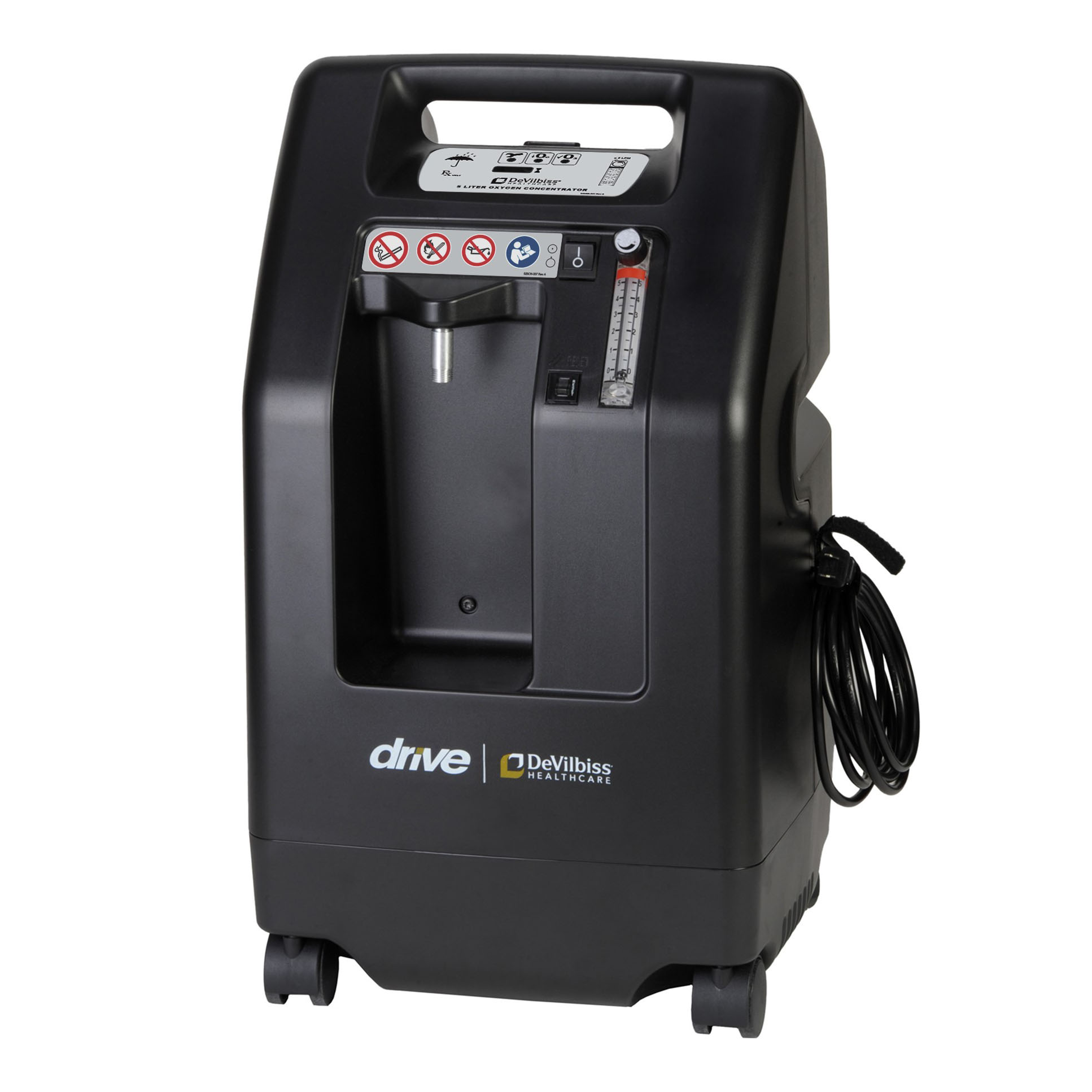

Manufacturing products that are of the highest possible quality is key to Drive DeVilbiss International. Delivering up to 5 liters per minute with high oxygen concentration across all flow rates and adopting the latest developments in the reduction of sound and power consumption, the Compact 525 increases patient comfort and lowers operating costs.
Added features
- Improved sound level reduction – our quietest concentrator yet
- Front label with easy to read pictograms
- Integrated handle and castors for easy transport
- Simple to start-up and easy to use
Service and maintenance friendly
- 2 part case design
- 3 years limited warranty
Patient safety features
- OSD® Sensor for continuously monitoring oxygen levels
- Visual and audible alarms for low oxygen levels, power failure, low pressure and service required
- Oxygen outlet incorporating a fire protection technology
Environmentally friendly
- Intelligent power management system utilises Turn-Down Technology providing less power consumption at lower flow rates
- Reduced packaging: reducing materials and waste, as well as transportation costs and emissions – without compromising product protection
| PARAMETER |
|
| Dimensions (H x W x D) |
62.2 cm x 34.2 cm x 30.4 cm |
| Flow rate |
0.5 to 5 l/min |
| Oxygen Concentration |
at 0.5 – 5 l/min 93% ± 3% |
| Electrical Rating |
230 V, 50 Hz, 3.2A |
| Weight |
16.3 kg |
| Power Consumption |
approx. 290 Watt at 2 l/min | approx. 312 Watt at 5 l/min |
| Classification |
II Type B |
